Plane Moving Parking System



It is similar to the little train in a supermarket that can pick and place the goods from the shelf. A device for each layer can carry the car to drive along the roadway. When the vehicles enter the garage, the car, through the lifter, will be transferred to the carrying device on the related layer, and is carried to the vacancy. Conversely when taking out the car, it can be easily configured and customized to site dimension.

Different parking floor is connected to the entrance by the elevator. The driver just stop the car at the entrance and the whole car-accessing process can be done automatically, system This system also be incorporated with  mechanism turntable at the bottom for 180 degrees rotation driving the car directly forward.



The transferring crane is used to complete the move of cars in the same layer and the lift car is used for car lifting. With their joint work, the parking and car retrieval process can be completed in the multi-level moving garage.

As a result, it is widely applicable to the airport, station, prosperous business zone, stadium, office building and different areas in the city. It is one of the most ideal mechanical parking garages.



Parking operation :



The driver drives the car to the garage and opens the garage door. Then, the driver drives the car into the parking chamber under instruction on the automatic parking indicator panel in the garage. At that time, the detecting device measures the length, width and height of the car to ensure whether the car is suitable for parking.

Then, the driver flames out the car, pulls the hand brake, gets off the car, closes the car door, quits from the parking chamber and closes the garage door. While the garage door is being closed, the personnel detecting device can detect whether there are personnel left in the parking chamber. If the said safety detection fails to be passed, the system will give alarms.

Then, personnel in the center control room can notify the administrative personnel and driver via the interphone or speaker to adjust the car or ask the left personnel to leave the parking chamber. When the lift car carrying the car moves to the appointed layer, the car will be translated to the appointed spaced by the intelligent carrier. Then, the car parking is completed.

Car retrieval operation :



The driver or garage administrative inserts the parking card on the control panel or inputs orders on the operating panel. Then, the carrier will retrieve the appointed cart out and sent it to the lift car. Next, the lift car carrying the car will lift up to the entrance or exit layer and the garage door will automatically open. The driver drives the car out. Then, the car retrieval is completed.

Plane 1.png

Key Advantages

o Large scale parking of one hundred to thousands scale can be achieved.

o PLC intelligent control and centralized monitoring.

o High in/out speed, convenient operation, high  safety, high efficiency, convenient  parking and retrieving.

o Photographic detector, delayed warning, anti-falling  device overload warning, people and car entering .

o Totally enclosed construction, safe vehicle access.

o Space saving, flexible design, diverse modeling, less investment, low spending and maintenance cost.

o Various safety measures to ensure the safety of people and vehicles.

o Simple operation, can be either centrally operated or operated by user.

o Maximum weight capacity of 2.5 tons, meeting the parking demand of a large and luxurious vehicle

Plane Moving Spec.png
Referent specifications table
* Product photo by other for reference only
Plane Moving - Single Row
Plane Moving - Double Row

Dimension And Sketches

Plane 2.png

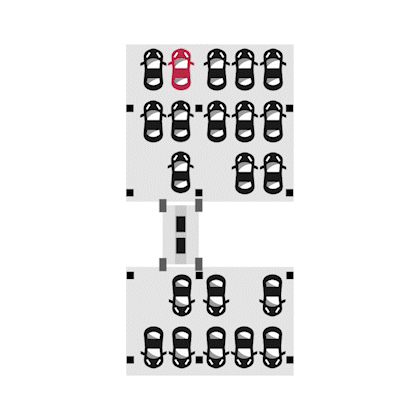

Plan Moving Double Row.gif
Plan 3.png
Double Row Operation
Plan double row.jpg
